Metallized Advanced Technic Ceramics Header for HVDC Relay part

Brand Name : CMC

Model Number : NE100

Certification : IATF16949, ISO9001, ISO14001, ISO45001

Place of Origin : China

MOQ : 3000pcs

Price : USD 1.25~3.5/PCS

Payment Terms : T/T,, L/C

Supply Ability : 60,000PCS/month

Delivery Time : 20 work days

Packaging Details : packing by plastic film,paper plate and carton

Material : 95% Alumina

Color : White, Pink

Unit : Piece

Contact Now

Ceramic Electronic Components for EV Relays and HVDC Contactors, White Porcelain Case for Arc Extinguish

1. Description:

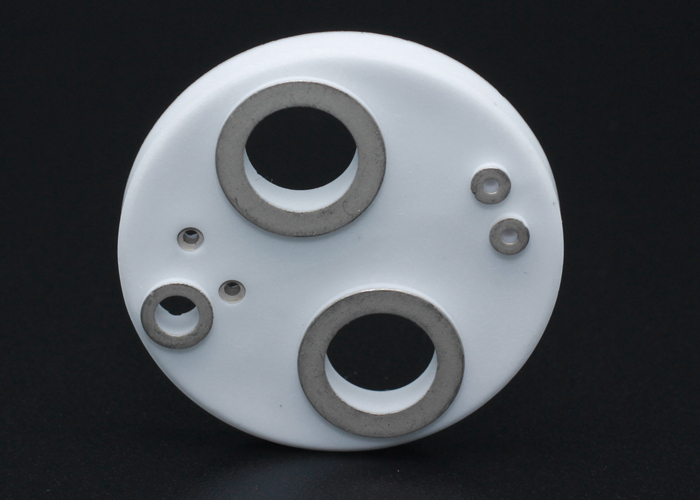

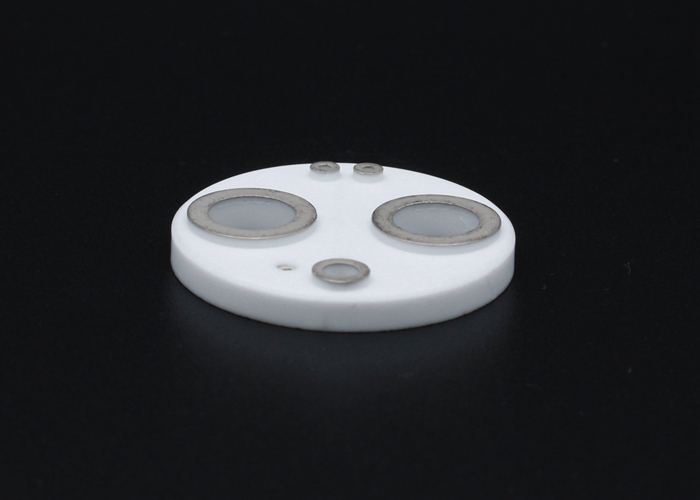

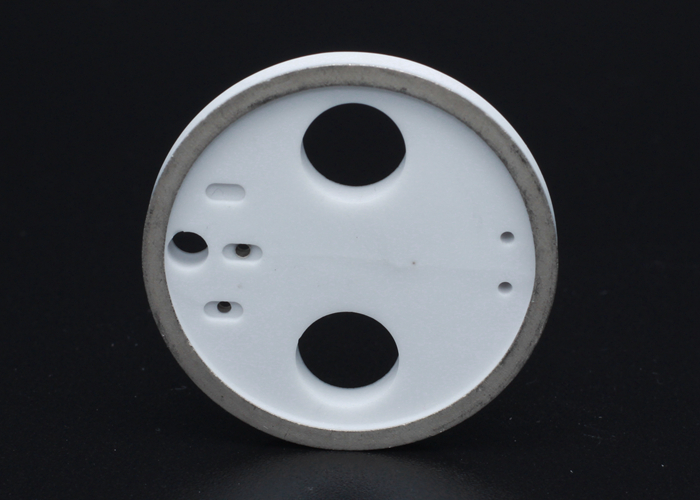

This alumina ceramic disc is made of 95% alumina, it is coasting manganese nickel metal on surface.

2. Key Words:

New energy, EV relay, HVDC contactor, Fast acting fusegear, Vacuum interrupter, Power battery cell connector, Arc extinguish,uniform texture and good batch stability,compact, continuous, smooth and weldability,high flexural strength, high tensile strength and good air tightness,high frequency, high power and good safety components,PHEV vehicles, power charing stations, power storage stations and urban commuting shuttles,95% alumina,white, pink.

3. Parameters:

Product Parameters
Physical Property	Material	95% Alumina
	Production Process	Dry Pressing
	Product Dimension	Per customers' drawing
	Density (g/cm³)	3.70-3.75g/cm³
	Water Absorption	0%
Mechanical Performance	Flexural Strength (Mpa)	310Mpa
	Modulus of Elasticity (Gpa)	310Gpa
	Hardness (Gpa)	12.9Gpa
	Poisson Ratio	0.23
Thermal Character	Linear Thermal Expansion Coefficient	7.2
Thermal Character	Heat Conductivity (W/mk)	23
Electrical Property	Dielectric Constant	9.2
	Dielectric Loss Tangent (x10^-4)	8
	Insulation Strength (x10⁶V/M)	15
Metalized Ceramic Performance	Air Tightness (Pa·m³/s)	≤10^-8
	Bulk Resistivity (Ω·cm)	≥10¹⁰(20°C), ≥10⁶ (300°C)
	Bonding Strength (Mpa)	≥120Mpa
	Metallization Thickness (μm)	≥20μm
